In modern industrial applications, Variable Frequency Drives (VFDs) have become core equipment for motor speed regulation and energy savings. However, as switching frequencies increase and application environments become more complex, the quality of waveforms at the VFD output has drawn growing attention. Ensuring that motors receive a “cleaner” power signal is key to improving reliability and extending service life.
Why Use Output Filters?
VFDs generate voltage through PWM switching. While this method enables efficient control, it also introduces harmonics and electromagnetic interference (EMI). For motors, prolonged operation under high-frequency harmonics and voltage spikes can cause winding overheating, insulation degradation, and even excessive noise or vibration.

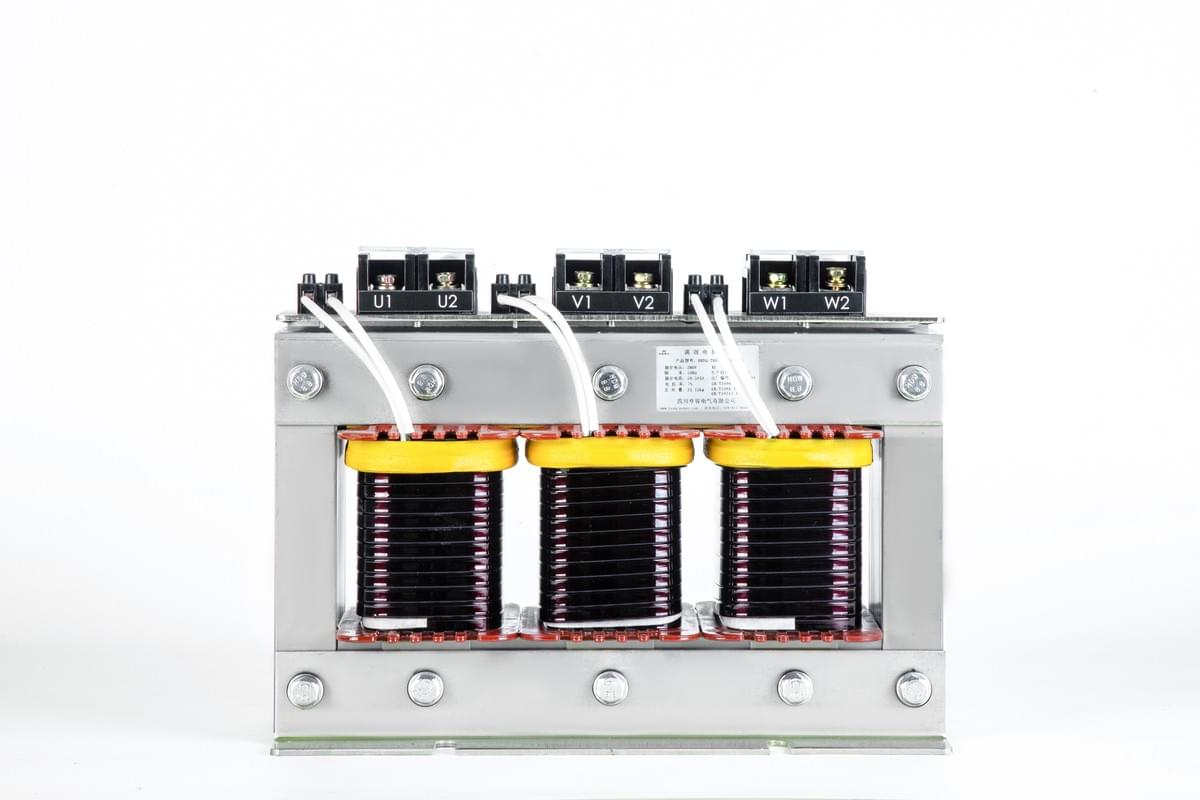

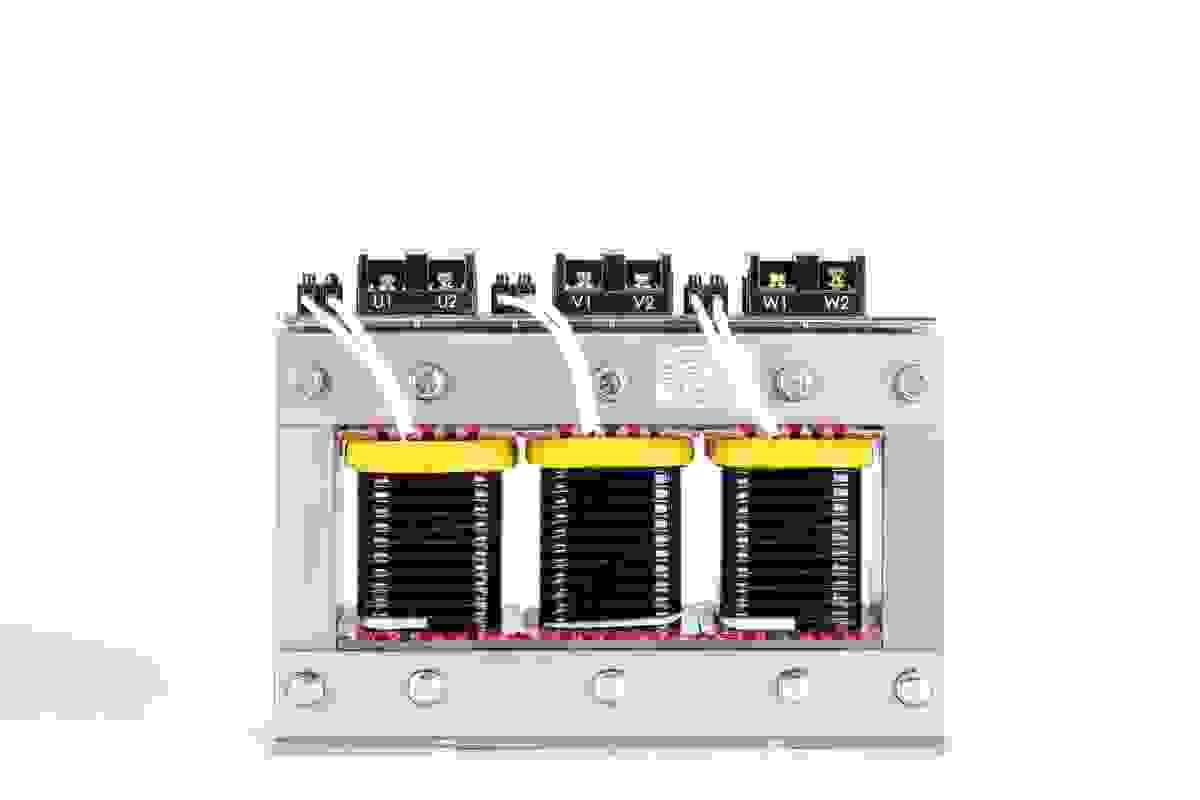

By adding an output filter circuit between the VFD and the motor, waveform quality can be significantly improved, EMI reduced, and system stability enhanced.
Benefits of Filtering Circuits
- Motor protection: Reduces high-frequency voltage stress on insulation, extending motor lifespan.
- Lower interference: Minimizes EMI that may affect surrounding equipment, improving system compatibility.
- Smoother operation: Provides more stable current, reducing noise and vibration.
- Higher efficiency: In some scenarios, reduces reactive losses and improves drive performance.
Industrial Application Scenarios
- Long cable transmission systems: Filters reduce voltage distortion during long-distance transmission.
- High-precision manufacturing equipment: Ensures stable motor operation to meet strict process requirements.
- High-reliability industries: In fields such as petrochemical and metallurgy, where system stability is critical, filters play an essential role.
Evolving Technology
With advancements in power semiconductors and control algorithms, VFD filtering technology is also evolving:
- More efficient topologies: Better filtering performance with lower energy loss.
- Modular design: Flexible configuration for different working conditions.
- Smart diagnostics: Real-time monitoring of filter health, enabling predictive maintenance.
Conclusion
In industrial drive systems, VFD output filtering is not just a “nice-to-have” — it is a crucial safeguard for long-term stability. By designing and applying filter circuits effectively, enterprises can achieve higher efficiency while ensuring safer and more reliable operations.
At Hengrong Electrical, we understand that every detail in power control matters. From advanced VFD design to innovative filtering solutions, we are committed to delivering reliable, efficient, and future-ready technologies. By choosing Hengrong, you gain more than just products — you gain a trusted partner dedicated to helping your business achieve smarter, safer, and greener operations.
