In the wave of global energy transformation, wind power, as a core force of renewable energy, is gradually becoming a mainstay of global electricity supply. In the stable operation system of wind farms, SVG (Static Var Generator), as a key reactive power compensation device, its performance directly affects the voltage quality of the power grid and the efficiency of wind power transmission. Especially in harsh environments such as coastal deserts, the maintenance and care of SVG have become a critical factor in ensuring the continuous operation of wind farms. This article will systematically analyze the maintenance and care strategies of SVG from multiple dimensions, including environmental adaptability, operational specifications, fault prevention, and technical upgrading, providing comprehensive guidance for wind farm operation and maintenance.
I. The Importance of SVG Maintenance: Why It Is the "Stabilizer" for Stable Wind Farm Operation
The power generation efficiency of wind farms is closely related to the stability of the power grid. However, the active power output of wind turbines fluctuates with wind speed, which easily leads to reactive power imbalance in the grid, causing voltage fluctuations, harmonic pollution, and other issues. As a dynamic reactive power compensation device, SVG can quickly adjust reactive power output by paralleling with the grid through a self-commutated bridge circuit, with a response time of less than 10ms—far superior to traditional compensation equipment in terms of response speed—earning it the title of "power balancer" in wind farms.
In the practice of a 99MW wind farm in Pakistan, located in a coastal desert area with severe sandstorms, salt spray corrosion, and large day-night temperature differences, the operating environment of SVG is extremely harsh. Data shows that the failure rate of SVG equipment without systematic maintenance is over three times that of equipment with standardized maintenance, and the shutdown loss caused by a single failure can reach tens of thousands of RMB. Therefore, scientific maintenance and care can not only extend the service life of SVG (usually by 5-8 years) but also reduce the risk of failures and ensure the continuous power generation capacity of wind farms.
II. Environment-Adaptive Maintenance: Targeted Measures for Harsh Working Conditions
The operating environment of SVG in wind farms directly determines the focus of maintenance strategies. The impact of climate and geological conditions in different regions on equipment varies significantly, so targeted maintenance plans need to be formulated.
(1) Prevention and Control of Dust Accumulation in Sandy Environments: Blocking Insulation Hazards from the Source
Strong winds in desert areas carry large amounts of sand and dust. To dissipate heat, SVG equipment usually adopts a forced air cooling design, which needs to continuously draw in external air during operation, leading to the accumulation of sand and dust inside the equipment. Under the influence of moisture, dust adheres to the surface of core components such as power units and reactors, reducing insulation resistance and heat dissipation efficiency, and in severe cases, may cause short-circuit faults.
To address this issue, maintenance should start from two aspects: "prevention" and "cleaning". Firstly, optimize the ventilation system design by installing high-efficiency dust filters at air inlets, and replace them regularly according to dust concentration (it is recommended to check weekly and replace monthly) to reduce the amount of inhaled dust. Secondly, formulate a monthly dust cleaning plan, using high-pressure air guns to purge the interior of power cabinets and control cabinets, focusing on cleaning dust on the surface of IGBT modules and radiators to ensure smooth heat dissipation channels. In the practice of a Pakistani wind farm, this measure extended the interval between failures caused by equipment dust accumulation from 1 month to over 6 months.
(2) Salt Spray Corrosion Protection in Coastal Environments: Building Multi-Layer Anti-Corrosion Barriers
Salt spray in coastal areas contains large numbers of chloride ions, which can cause severe corrosion to outdoor metal components (such as steel-cored aluminum strands, copper-aluminum joints) and insulating parts (such as porcelain insulators) of SVG. Data shows that the metal corrosion rate of unprotected equipment in salt spray environments can be 5 times that in inland areas. The accumulation of salt spray on the surface of porcelain insulators also increases leakage current, leading to short circuits or explosions.
Protection measures should run through the entire life cycle of the equipment: in the material selection stage, prioritize salt spray-resistant materials such as hot-dip galvanized steel and silicone insulators, and apply anti-corrosion sealant at copper-aluminum joints; regularly (quarterly) perform rust removal on outdoor metal components, apply salt spray-resistant coatings, and clean porcelain insulators to remove surface deposits; conduct an annual insulation resistance test to ensure insulation performance meets standards. A coastal wind farm extended the wire replacement cycle from 1 year to 3 years and reduced the failure rate of porcelain insulators by 70% through this scheme.
(3) Condensation Control Caused by Day-Night Temperature Differences: Dynamically Regulating the Micro-Environment of Equipment
The day-night temperature difference in desert areas can exceed 20℃, and the high humidity environment at night easily forms condensation inside the equipment, leading to circuit board short circuits and corrosion of metal components. Failures caused by condensation are particularly prominent in winter, accounting for over 30% of total SVG failures.
Condensation control requires a two-pronged approach of humidity control and drainage optimization. Install temperature and humidity sensors inside the equipment; when humidity exceeds 80%, automatically start dehumidifiers to ensure cabinet humidity remains stable between 50% and 70%; add drainage outlets at the bottom of power cabinets and control cabinets, and regularly check drainage smoothness to avoid water accumulation; in winter, turn on the power room heater (when shut down) at night to reduce the temperature difference between the inside and outside of the equipment, thereby reducing condensation. A wind farm reduced circuit board failures caused by condensation from 2 cases per month to 1 case per quarter through this scheme.
III. Daily Operational Specifications: Standardized Processes to Reduce Human-Induced Failures
The stable operation of SVG is inseparable from standardized operating procedures. Incorrect commissioning or shutdown steps may cause equipment damage or safety accidents, so operational specifications should be incorporated into the daily maintenance system.
(1) "Three Checks and Four Inspections" System Before Commissioning
Comprehensive inspections are required before commissioning to ensure the equipment is in normal condition: "Three Checks" refer to checking the equipment appearance (whether there are foreign objects, whether cabinet doors are closed), checking connecting components (whether cable bolts are tightened, whether knife switches are in the correct position), and checking the power supply system (whether cooling fans and control power supplies are normal); "Four Inspections" refer to inspecting insulation resistance (tested with a megohmmeter, ensuring a minimum of 1000MΩ), inspecting the grounding system (grounding resistance ≤4Ω), inspecting software status (control software has no errors, indicator lights display normally), and inspecting environmental parameters (cabinet humidity ≤70%, temperature ≤40℃).
A wind farm suffered a short-circuit accident due to failure to check the position of the grounding knife switch before commissioning, resulting in a 3-day shutdown and a power loss of over 100,000 kWh. It is evident that strictly implementing pre-commissioning inspections is key to avoiding human-induced failures.
(2) "Orderly Switching" Principle After Shutdown
Shutdown operations must follow the sequence of "stopping the equipment first, then cutting off the power": first click the "stop" button through the control software, and after the equipment enters the ready state, open the high-voltage switch; close the control software and industrial computer, then disconnect the cooling fan and control cabinet power supply in sequence, and finally close the heater switch (in winter). It is strictly forbidden to directly disconnect the high-voltage switch for forced shutdown to avoid damaging the IGBT module.
A maintenance team skipped the software stop step during an emergency shutdown and directly pulled off the high-voltage switch, resulting in damage to 2 power units with a maintenance cost exceeding 50,000 RMB. Therefore, standardized shutdown procedures are an important part of equipment protection.
(3) "Five Observations and Three Measurements" Points for Daily Inspections
Daily inspections should include "Five Observations": observing indicator light status (whether running lights and fault lights are normal), observing the cooling system (fan speed, whether air ducts are blocked), observing cabinet appearance (whether there is rust or deformation), observing cable joints (whether there is overheating discoloration), and observing software data (whether reactive power compensation, current, and voltage are stable); "Three Measurements": measuring cabinet temperature (surface temperature ≤50℃), measuring environmental humidity (≤70%), and measuring abnormal noise (no abnormal noise during equipment operation). If abnormalities are found, shut down immediately for troubleshooting to prevent fault expansion.
IV. Full-Life Cycle Fault Prevention: From Regular Maintenance to Predictive Maintenance
The traditional maintenance mode is mostly "repair after failure", while modern wind farms focus more on "prevention first", establishing a full-life cycle maintenance system to eliminate faults in the bud.
(1) Monthly "Minor Maintenance": Focusing on Core Component Inspections
Conduct targeted maintenance on SVG monthly: clean radiator surfaces to ensure heat dissipation efficiency; check IGBT module temperatures (≤85℃ during operation) and record temperature change curves; test cooling fan air volume and replace aging filters; calibrate control software parameters (such as response time and compensation accuracy) to ensure they match grid requirements. By continuously tracking the status of core components, potential problems can be identified in a timely manner.
(2) Quarterly "Medium Maintenance": Systematic Performance Evaluation
Conduct a comprehensive performance evaluation quarterly: carry out dielectric loss tests (to evaluate insulating oil performance), DC resistance tests (to detect reactor status), and switch characteristic tests (to test IGBT conduction time); conduct offline detection of power units and replace aging capacitors; check optical fiber communication links (bit error rate ≤10^-9) to ensure stable signal transmission. A wind farm discovered a potential inter-turn short circuit in a reactor in advance through quarterly tests, avoiding equipment burnout accidents.
(3) Annual "Major Overhaul": In-Depth Maintenance of the Entire System
Annual overhauls should cover the entire equipment system: disassemble and inspect outdoor reactors, remove surface oil stains and dust; organize wires in control cabinets and replace aging wires and terminals; upgrade control software versions and optimize compensation algorithms; conduct linkage tests (simulate grid faults to test SVG response speed) to ensure coordinated operation with other wind farm equipment. Annual overhauls can be carried out in conjunction with the wind farm's shutdown window to reduce the impact on power generation.
(4) "Three Modernizations" Upgrade of Predictive Maintenance
With the application of IoT technology, SVG maintenance is shifting from regular maintenance to predictive maintenance: real-time collection of equipment data (temperature, humidity, current, voltage, etc.) through sensors to achieve "digitalization" of condition monitoring; using AI algorithms to analyze data trends and predict fault probabilities (such as early warning of possible short circuits when insulation resistance continues to decrease) to achieve "intelligence" of fault early warning; establishing a maintenance knowledge base to record fault handling plans to achieve "standardization" of experience inheritance. A smart wind farm improved the SVG fault detection rate to 90% and reduced maintenance costs by 40% through a predictive maintenance system.
V. Technical Upgrading and Maintenance Innovation: Adapting to New Needs of Wind Power Development
With the increase in wind farm single-machine capacity (from 2MW to 6MW+), the capacity and performance requirements of SVG are constantly improving, and maintenance technologies also need to be innovated to adapt to new operating environments.
(1) "Air-Cooled to Water-Cooled" Transformation of Cooling Systems
Traditional air-cooled systems have high maintenance costs in high-dust environments and can be upgraded to water-cooled systems: adopt closed circulating water cooling to avoid air exchange with the outside world, solving dust accumulation from the source; water cooling is over three times more efficient than air cooling, reducing IGBT module temperatures by 10-15℃ and extending service life; equipped with an intelligent temperature control system to automatically adjust flow according to load, saving energy by over 30%. After transformation, a desert wind farm reduced cooling system maintenance workload by 60%, with equipment operating temperatures stable below 45℃.
(2) Breakthroughs in Weather Resistance of Material Technology
The application of new materials can improve equipment environmental resistance: using nano-coating technology to treat radiators to enhance corrosion resistance and dustproof performance; using ceramic insulating materials instead of traditional porcelain insulators to improve salt spray resistance and aging resistance; developing self-healing sealants that automatically heal when cracks appear to reduce moisture intrusion. These material innovations can extend the maintenance cycle by over 50%.
(3) Improved Maintenance Convenience with Modular Design
SVG with a modular design divides power units, control systems, etc., into independent modules. When a module fails, it can be replaced quickly, reducing shutdown time. After adopting modular SVG, a wind farm shortened power unit replacement time from 8 hours to 2 hours, reducing single-fault losses by 75%. Meanwhile, the modular design facilitates later capacity upgrades to meet wind farm expansion needs.
VI. Conclusion: Maintenance Is the "Multiplier" of SVG Efficiency
In the context of continuous growth in wind power installed capacity, as key equipment to ensure grid stability, the importance of SVG maintenance and care is becoming increasingly prominent. From environmental adaptation in coastal deserts to standardized daily operations, and then to full-life cycle fault prevention, every maintenance measure is a "safety valve" for stable equipment operation. By innovating technologies and optimizing management, establishing a "prevention-oriented, precise maintenance" system can not only reduce failure rates but also improve SVG operating efficiency, creating greater economic benefits for wind farms.
In the future, with the deep integration of new energy and intelligent technologies, SVG maintenance will develop in a more intelligent and efficient direction, providing solid technical support for the transformation of the global wind power industry and helping to achieve energy structure upgrading under the "dual-carbon" goals.
Hengrong Electric Co., Ltd., China. We specialize in high-performance power capacitors and reactive power compensation systems, with over 20 years of experience in power quality solutions.
Here are our key products:
Self-healing Low-voltage Capacitor – Improves power factor and reduces losses.
Detuned / Harmonic Reactor – Suppresses harmonics, protects capacitors.
Power Quality Controller – Real-time monitoring and capacitor control.

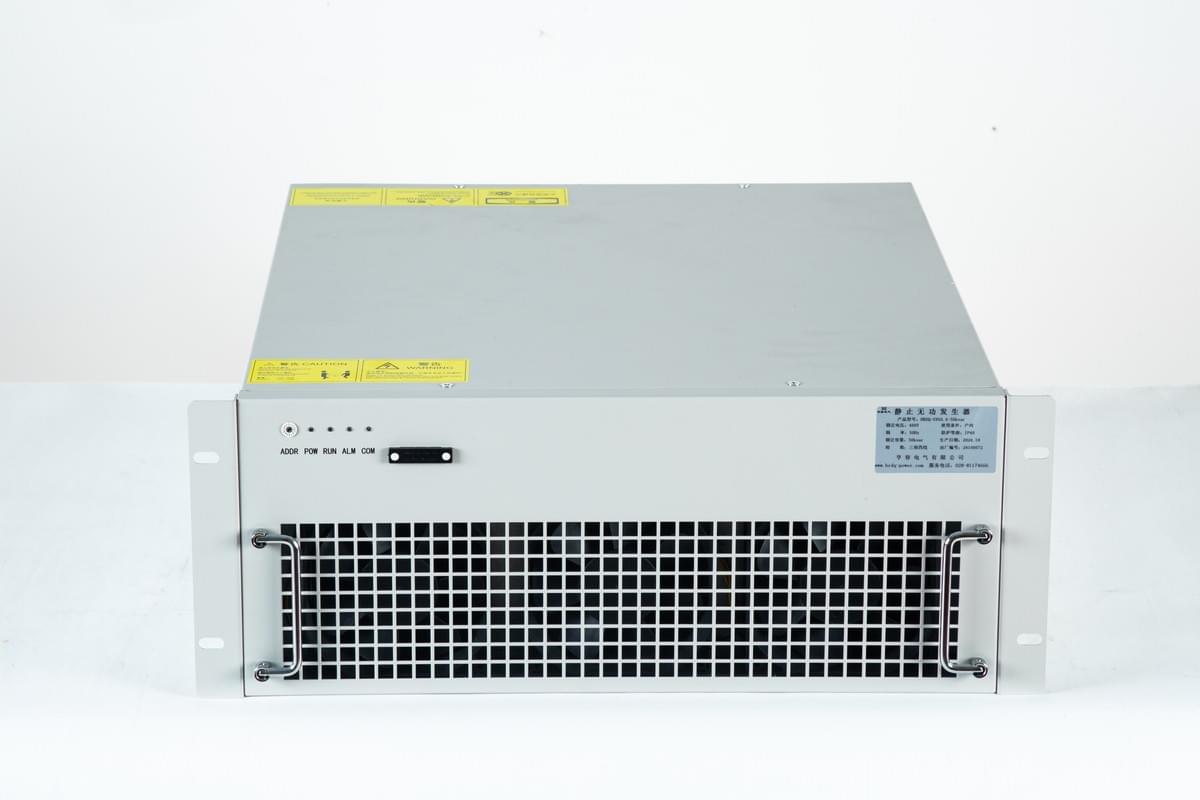

Static Var Generator (SVG) – Fast dynamic reactive compensation.
