In the power system, high-voltage shunt capacitors are key equipment for ensuring the stable operation of the power grid. Once a capacitor is damaged, it is easy to trigger the system unbalance protection operation and affect the power supply safety. However, in the traditional maintenance of high-voltage capacitors, pain points such as "frequent replacement of detection devices, forgetting detection steps, and high electric shock risk" have long plagued power operation and maintenance personnel, and even threatened personal and equipment safety. For this reason, a multifunctional discharge detection device for high-voltage capacitors integrating "electrical inspection, discharge, residual voltage monitoring, and capacitance testing" has emerged, completely changing the cumbersome and risky situation of high-voltage capacitor maintenance.
I. Traditional High-Voltage Capacitor Maintenance: Many Pain Points and High Risks
In the past, when maintaining high-voltage capacitors, operation and maintenance personnel often faced three major problems:
- Tedious Operation and Low Efficiency: Independent devices are required for electrical inspection, discharge, and capacitance testing. Re-wiring and device replacement are needed for each test, which is not only time-consuming but also prone to missing key detection steps;
- Prominent Safety Hazards: Traditional discharge uses a grounding wire to directly short-circuit the two poles of the capacitor. However, a large amount of residual charge stored in the capacitor will be released instantly, which may easily cause personal electric shock or equipment damage;
- Lack of Residual Voltage Monitoring: There is no special residual voltage monitoring device, so operation and maintenance personnel cannot judge whether the capacitor still retains charge. During subsequent testing, it may damage the instrument or even cause accidents.
These problems make high-voltage capacitor maintenance a "high-risk link" in the power system.
II. Multifunctional Discharge Detection Device: The "Maintenance Artifact" for High-Voltage Capacitors
This multifunctional discharge detection device for high-voltage capacitors, jointly developed by units such as Guizhou Electric Power Vocational and Technical College, adopts an integrated design of "insulated operating rod + multifunctional operation box", integrating five core functions into one. It realizes "one-time wiring and full-process testing", completely solving the pain points of traditional maintenance.
1. Structural Design: Simple, Practical and Adaptable to Multiple Scenarios
- Insulated Operating Rod: The telescopic structure can be freely adjusted in length. Equipped with a shaped hose, it can rotate flexibly, and the jaw can be easily hung on the terminal of the high-voltage capacitor bushing; the grounding bolt at the jaw can be connected to a transparent insulated grounding wire to ensure operation safety.
- Multifunctional Operation Box: It integrates all units such as electrical inspection, discharge, residual voltage monitoring, and capacitance testing. It is equipped with a data display screen, capacitance detection button, reset button, etc., which can display detection data in real time and make operation clear at a glance.
2. Five Core Functions, Covering the Whole Maintenance Process
(1) Electrical Inspection: Acoustic and Optical Alarm to Confirm "No Electricity" Before Operation
When inspecting the primary side of the ABC three phases of the discharge PT, it is only necessary to connect the operation box through the device's wiring rod and grounding wire. The DC electrical inspection circuit in the box will display the voltage in real time and trigger an acoustic and optical alarm—if there is electricity, the alarm will remind; if there is no electricity, the alarm will stop, avoiding the risk of "live operation".
(2) Discharge Through Resistor: Stable Energy Release to Protect Personnel and Equipment
After confirming that there is no electricity, for the damaged capacitor, the device realizes stable discharge through the "grounding rod - grounding wire - operation box" circuit and the discharge resistor connected in parallel: the discharge current is effectively reduced, and at the same time, the acoustic and optical alarm prompts the discharge progress in real time until the residual voltage returns to zero and the alarm stops, ensuring "complete discharge and no residual charge".
(3) Residual Voltage Monitoring: Real-Time Display to Eliminate "Hidden Risks"
After discharge through the resistor, there may be recovery voltage at the capacitor terminals. The residual voltage monitoring circuit of the device will display the residual voltage in real time. Only when the value returns to zero can the discharge be confirmed as complete, avoiding electric shock or instrument damage in subsequent operations due to "residual charge".
(4) Capacitance Testing: One-Click Switching to Quickly Locate Faults
Without re-wiring, it is only necessary to switch the switch on the operation box to the "capacitance testing" gear to quickly detect the capacitance value: if the value does not meet the requirements, the damaged capacitor can be directly located; if it meets the requirements, only the fuse needs to be replaced, which greatly reduces the maintenance workload.
(5) Direct Short-Circuit Discharge: Complete Discharge, Equivalent to a "Mobile Grounding Wire"
According to the residual voltage monitoring results, switch to the "direct short-circuit discharge" gear to completely discharge the capacitor. At this time, the device does not need to remove the insulated operating rod, which is equivalent to a "mobile grounding wire", facilitating the subsequent inspection of operation and maintenance personnel entering the capacitor bank and providing full sense of security.
III. Three Advantages: Safe, Efficient and Reliable, Empowering Power Maintenance
- Guaranteed Safety: Insulated design + resistor discharge buffer avoid the risks of "electric shock" and "equipment damage" from the source; dual verification of residual voltage monitoring and acoustic-optical alarm ensures that each operation is within the "safety boundary".
- Greatly Improved Efficiency: One-time wiring completes the whole process of electrical inspection, discharge and testing, without repeated device replacement, reducing operation steps and lowering the work intensity of operation and maintenance personnel.
- More Convenient Operation: The data display screen realizes real-time visualization, and the button-type operation is simple and easy to understand. Even novices can get started quickly, avoiding the problem of "forgetting detection content".
IV. Implementation Value: Safeguarding Power Safety and Assisting Stable Power Grid Operation
Nowadays, this multifunctional discharge detection device for high-voltage capacitors has been widely used in the power system. Whether it is capacitor bank maintenance, single capacitor fault diagnosis, or daily preventive testing, it can provide "safe, efficient and reliable" detection support for operation and maintenance personnel. It ensures the personal safety of test personnel when entering the capacitor bank for inspection and testing, and at the same time reduces the equipment failure downtime, providing a strong guarantee for the stable operation of the power grid.
With the continuous upgrading of the power system, the safe maintenance of high-voltage capacitors is becoming more and more important. This multifunctional discharge detection device is not only a product of "technological innovation" but also the implementation of the power industry's concept of "safety first"—choosing it means choosing a "worry-free, reassuring and secure" maintenance solution for high-voltage capacitors.
Hengrong Electric Co., Ltd.
We specialize in providing high-efficiency reactive power compensation and power quality optimization solutions. With over 20 years of industry experience, our products excel in enhancing grid efficiency, reducing energy consumption, and ensuring system stability.
Our core products and services include:
Low-voltage Reactive Power Compensation and Power Quality Optimization:

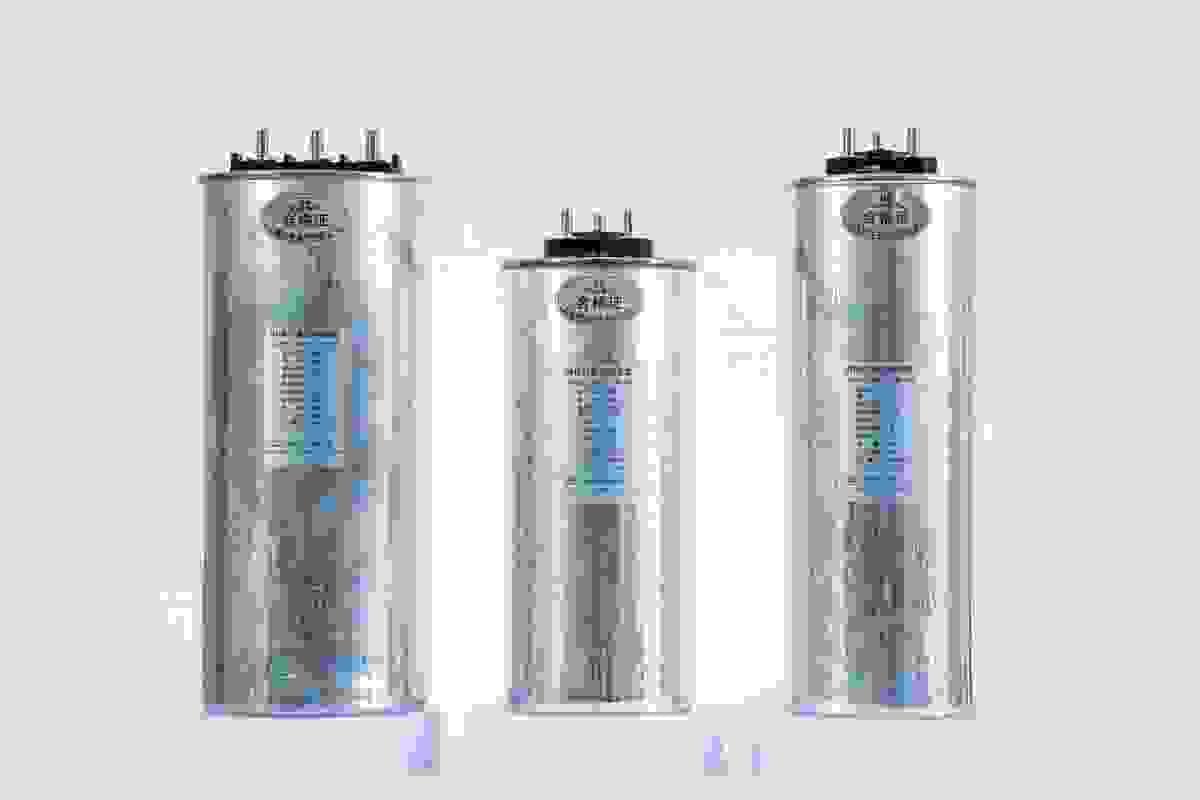

Self-healing Capacitors:
