In power systems, capacitors and reactors serve as core components for reactive power regulation and harmonic filtering. Through flexible series or parallel configurations, they can address critical issues such as high line losses, low power factor, and harmonic pollution. Whether for voltage stabilization in high-voltage long-distance transmission lines or reactive power compensation in industrial substations, the synergistic application of capacitors and reactors significantly enhances the safety and economy of power grids. This article explains how these two devices optimize power system operation from the perspectives of series/parallel topologies, functional advantages, and engineering case studies.
I. Pain Points in Power Systems: Why Synergy Between Capacitors and Reactors Is Needed?
Reactive power imbalance and harmonic issues in power systems lead to voltage drops, increased line losses, and equipment overloads. The combination of capacitors and reactors provides targeted solutions to these pain points:
1. Low Power Factor Due to Insufficient Reactive Power: Capacitors Supply Capacitive Reactive Power, Reactors Ensure Precision Control
Inductive loads (e.g., motors, transformers) in industrial users (such as coal mines and chemical plants) consume large amounts of reactive power, reducing the power factor to 0.7-0.8 (below the national standard of 0.9). Measurements at a substation show that with a power factor of 0.8, annual electricity fines exceed 800,000 yuan, and 10kV line losses increase by 30%. Capacitors (e.g., shunt capacitor banks) inject capacitive reactive power into the system, while reactors precisely adjust the compensation amount to avoid over-compensation or under-compensation. This stabilizes the power factor at above 0.95, eliminating fines and reducing line losses.
2. Equipment Damage Caused by High-Order Harmonics: Reactors Filter Harmonics, Capacitors Avoid Overload
Nonlinear loads such as frequency converters and rectifiers generate 3rd, 5th, and 7th harmonics, leading to overheating of capacitors and aging of transformer insulation. In one factory, excessive 5th harmonics caused the burnout of 3 sets of low-voltage capacitors within a year, resulting in losses exceeding 500,000 yuan. Reactors (e.g., series-tuned reactors) and capacitors form a filtering circuit to eliminate specific harmonics (e.g., a reactor with 6% reactance rate suppresses 5th and higher-order harmonics). This reduces the current distortion rate from 15% to below 5%, protecting capacitors from overload damage.
3. Voltage Instability in Long-Distance Transmission: Capacitors Offset Inductance, Reactors Suppress Voltage Rise
High-voltage transmission lines (e.g., 110kV, 220kV) experience voltage drops of up to 20% at the end due to inductive effects, preventing normal startup of equipment for remote users. When capacitors are connected in series to the line, they offset line inductance, effectively shortening the transmission distance (e.g., for lines over 52km, series-connected capacitors reduce voltage drop by 15%). If the line voltage becomes excessively high during no-load operation, shunt-connected reactors absorb capacitive charging power to prevent power frequency voltage rise and self-excitation, ensuring equipment safety.
II. Core Topologies of Capacitors and Reactors: Series and Parallel Application Scenarios
The series and parallel configurations of capacitors and reactors are tailored to different scenario requirements, with distinct functional orientations and technical logics—key to their synergistic effectiveness:

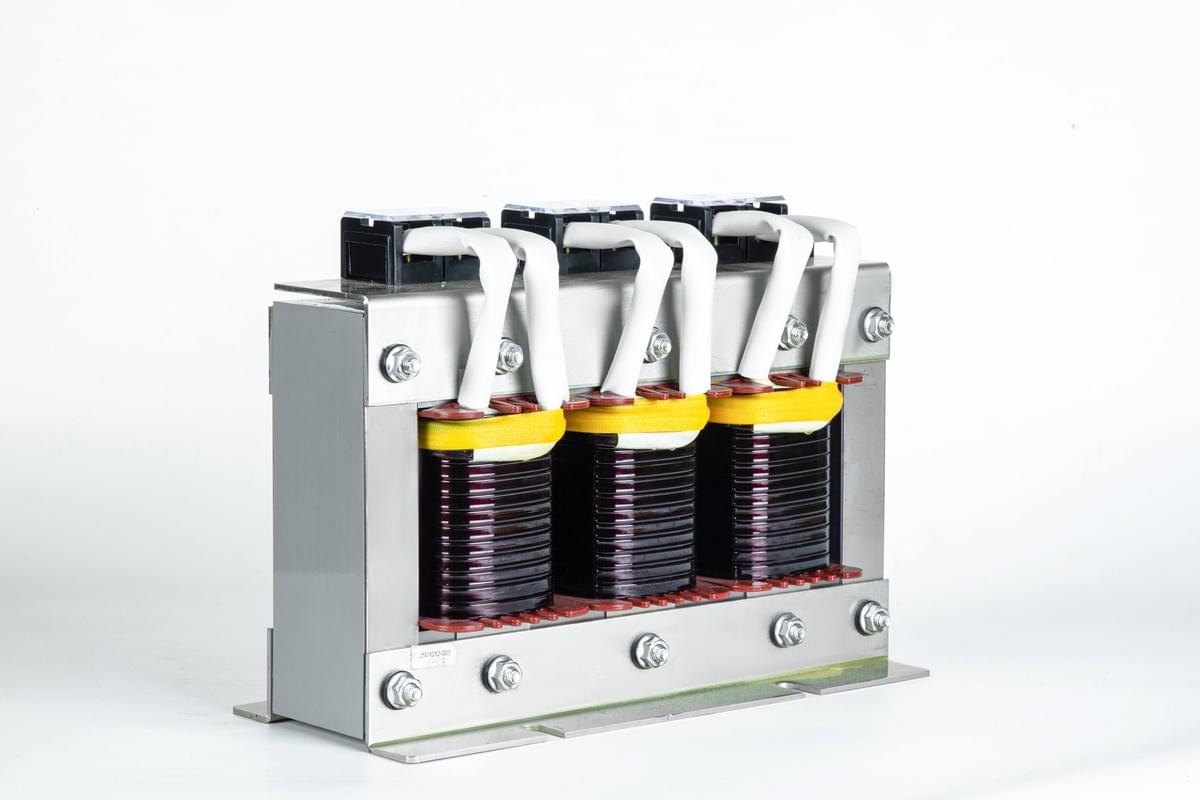

1. Series Topology: Capacitor + Reactor, Focused on Filtering and Current Limiting
The series topology, centered on a "capacitor + reactor" series connection, primarily addresses harmonic suppression and inrush current limiting during capacitor switching. It is commonly used in reactive power compensation circuits and filtering systems:
- Core Function: When a reactor is connected in series with a capacitor compensation circuit, it suppresses inrush current during capacitor switching (reducing the peak value from 10 times the rated current to below 5 times) and filters high-order harmonics (e.g., 3rd, 5th) in the power grid. For example, after connecting a reactor with 6% reactance rate in series with a 10kV capacitor bank, the 5th harmonic filtering rate reaches 92%, extending the capacitor service life by 5 years;
- Applicable Scenarios: Industrial substations, factory areas with concentrated nonlinear loads (e.g., steel, chemical industries), and capacitor banks requiring closing inrush current limiting;
- Technical Logic: By matching parameters (e.g., capacitive reactance and inductive reactance) of reactors and capacitors, the circuit resonates at specific harmonic frequencies, diverting harmonic currents to the filtering branch and preventing them from entering the power grid to affect other equipment.
2. Parallel Topology: Capacitor + Reactor, Focused on Reactive Power and Voltage Regulation
The parallel topology is divided into "shunt capacitor" and "shunt reactor" configurations, corresponding to reactive power compensation enhancement and voltage stabilization control needs, respectively. Their synergy enables response to load fluctuations:

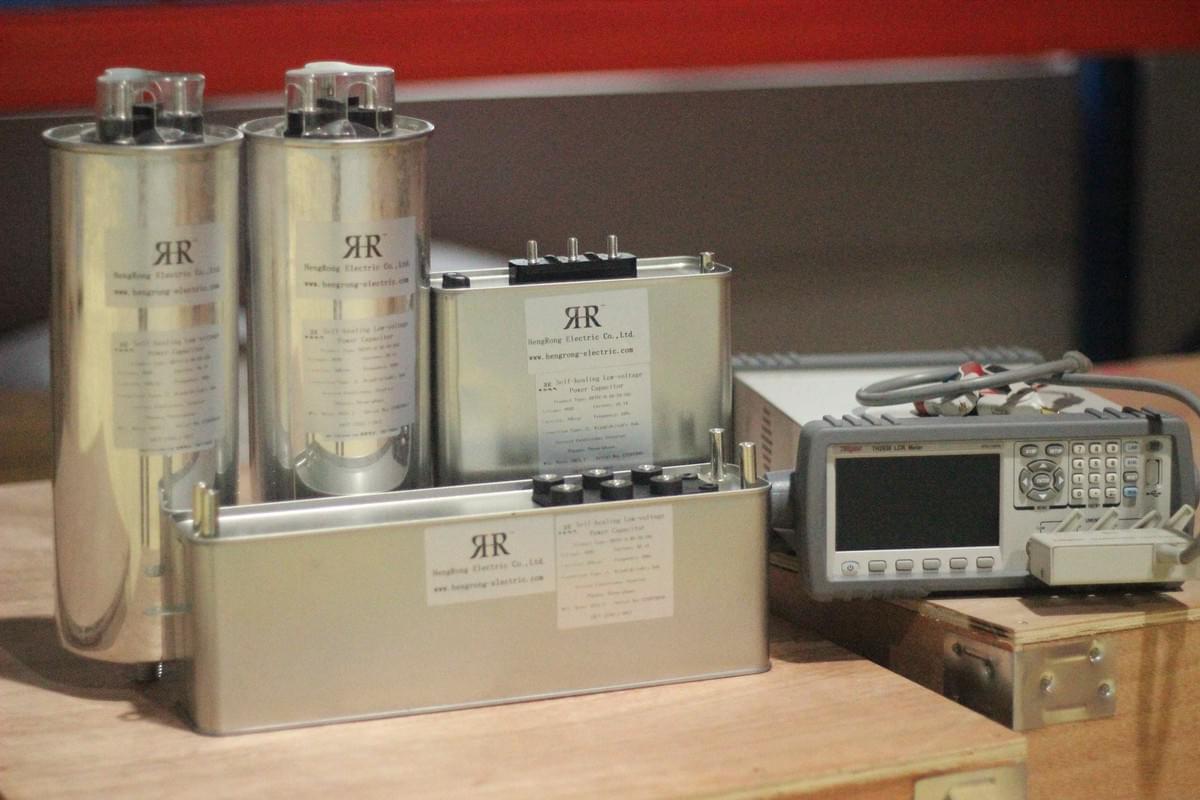

- Shunt Capacitors: Directly connected in parallel to system buses (e.g., 10kV, 35kV buses), they supply inductive reactive power to the system, improving power factor and bus voltage. After connecting 3 sets of capacitors (total capacity 1800kvar) in parallel to the 10kV bus of a substation, the power factor increased from 0.78 to 0.97, and bus voltage fluctuation was reduced from ±8% to ±2%;
- Shunt Reactors: Used in ultra-high-voltage long-distance transmission lines (e.g., 220kV and above), they absorb capacitive charging power during line no-load operation to suppress power frequency voltage rise. For example, after connecting shunt reactors to a 500kV no-load line, the voltage rise amplitude was reduced from 15% to 5%, preventing equipment self-excitation;
- Synergistic Advantage: Based on power grid load changes, capacitors and reactors in parallel can be dynamically switched—capacitors are put into operation to compensate reactive power during peak loads, while reactors absorb capacitive power during low loads—ensuring grid voltage stability within ±2% of the rated range.
III. Key Application Scenarios of Capacitors and Reactors: Effect Verification
The combination of capacitors and reactors delivers significant benefits in both high-voltage transmission lines and industrial substations. The measured effects in the following three core scenarios confirm their synergistic value:
1. High-Voltage Long-Distance Transmission: Series Capacitors + Shunt Reactors for Capacity Enhancement and Voltage Stabilization
- Problem: For 110kV transmission lines over 50km, high inductance and low resistance cause a voltage drop of up to 18% at the line end, limiting transmission capacity; capacitive charging power during no-load operation leads to a 12% voltage rise;
- Solution: Connect capacitors in series to the line (total capacity calculated based on line inductance) to offset partial line inductance, effectively shortening the transmission distance (reducing a 50km line to an equivalent 35km); simultaneously, connect reactors in parallel at both ends of the line to absorb no-load charging power;
- Effect: The end-of-line voltage increased by 15%, transmission capacity rose by 25%, and no-load voltage rise was controlled within 5%, fully meeting the power needs of remote users and reducing annual line losses by 28%.
2. Industrial Substations: Shunt Capacitor Banks + Series Reactors for Reactive Power Compensation and Harmonic Filtering
- Problem: At a 10kV substation of a coal-fired power company, inductive loads from the main transformer (S11-20000/110/10.5) and motors reduced the power factor to 0.78, with 5th harmonic content reaching 8%, increasing line losses by 30%;
- Solution: Connect 3 sets of capacitors (total capacity 2400kvar) in parallel to the 10kV bus, with each set in series with a reactor of 6% reactance rate (to suppress 5th and higher-order harmonics); use a power factor controller for automatic switching;
- Effect: The power factor increased to 0.97, saving 1.53 million yuan in annual electricity costs; 5th harmonic content dropped to 0.8%, line losses decreased by 31%, transformer temperature fell by 8℃, and equipment failure rate decreased by 40%.
3. Nonlinear Loads: Capacitor + Reactor Filter Circuit for Equipment Protection and Grid Stabilization
- Problem: Frequency converter loads in a chemical plant generated large amounts of 3rd harmonics (10% content), causing capacitor overheating and circuit breaker misoperation;
- Solution: Configure a 3rd harmonic filtering circuit—connect a capacitor in series with a reactor of 12% reactance rate, tuned to the 3rd harmonic frequency (150Hz), diverting harmonic currents to the filtering branch;
- Effect: The 3rd harmonic filtering rate reached 95%, eliminating capacitor overload issues; circuit breaker misoperation rate dropped from 12% to 0, and the service life of frequency converters was extended by 3 years.
IV. Engineering Selection of Capacitors and Reactors: Parameter Matching Case
In practical engineering, the selection of capacitors and reactors requires precise parameter matching based on power grid parameters and load characteristics. The following case of a 10kV substation serves as a reference:
1. Core Parameter Calculation: Capacitor Capacity and Reactor Reactance Rate
- Capacitor Capacity: Calculated based on the load’s active power and target power factor using the formula:
Capacitor Capacity = Active Power × (Tangent Value of Pre-Compensation Power Factor - Tangent Value of Post-Compensation Power Factor)
For example, if a substation has an active power of 12,000kW, pre-compensation power factor of 0.78 (tangent value 0.8), and target power factor of 0.97 (tangent value 0.25), the required capacitor capacity = 12,000 × (0.8 - 0.25) = 6600kvar. A 1.3x margin is considered to handle load fluctuations, so 8600kvar is actually selected;
- Reactor Reactance Rate: Selected based on the harmonic order to be filtered—12% reactance rate for 3rd harmonic suppression, 4.5%-6% for 5th and higher-order harmonics, and 0.5%-1% for inrush current limiting only. Due to significant 5th harmonics at this substation, a 6% reactance rate was chosen to ensure harmonic filtering effectiveness and capacitor safety.

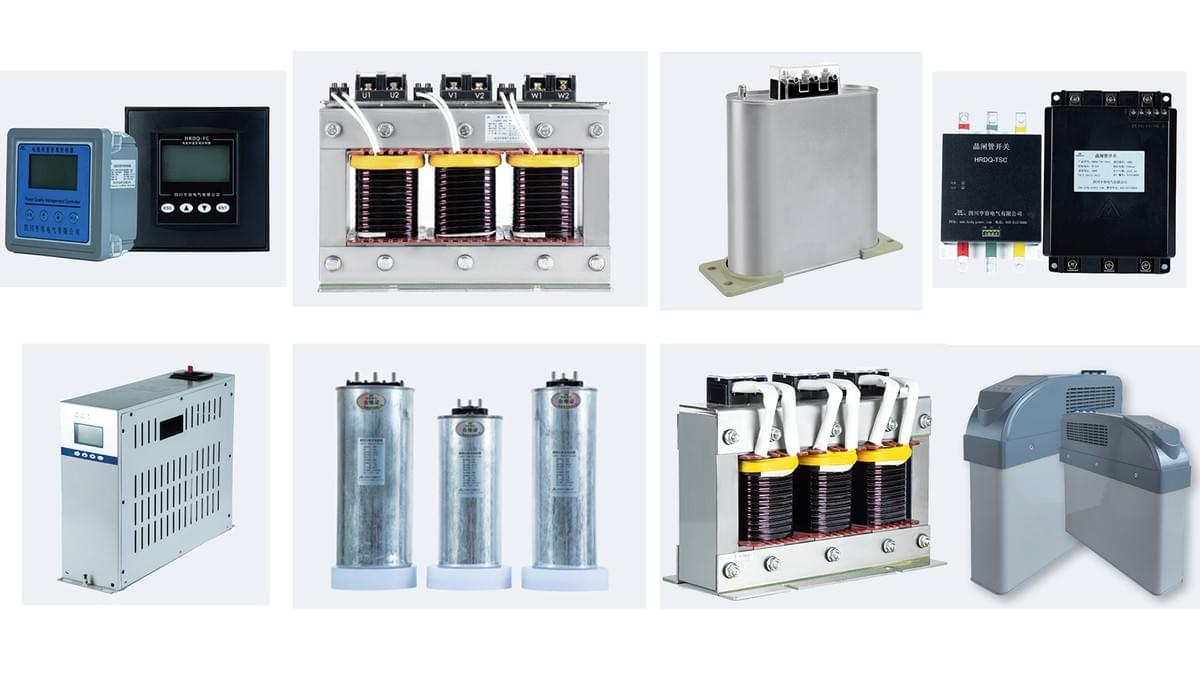

2. Equipment Selection Details: Capacitor and Reactor Models/Specifications
In this selection, shunt capacitors use model SKE-5-069-400, with 9 units in total, configured in 3 groups (3 units of 150kvar, 3 units of 250kvar, 3 units of 400kvar). The total capacity covers the basic compensation requirement of 2400kvar, supporting switching combinations for different load conditions. Series reactors use model CKSC-10-6%, with 3 groups in total—each with a 6% reactance rate and rated current of 80A, corresponding one-to-one with the capacitor groups. This ensures inrush current limiting and harmonic filtering during the switching of each capacitor group. Additionally, one PFC-10kV power factor controller (supporting RS485 communication) is used to enable automatic switching and status monitoring of capacitors and reactors.
3. Application Effects: Realization of Synergistic Value of Capacitors and Reactors
- Power Quality: The power factor increased from 0.78 to 0.97, 5th harmonic content dropped from 8% to 0.8, and bus voltage stabilized at 10.5kV±2%, fully complying with GB/T 14549-1993 Power Quality - Harmonics in Public Supply Networks;
- Economic Benefits: Annual electricity cost savings reached 1.53 million yuan (including 860,000 yuan in fine reductions and 670,000 yuan in line loss reductions). The total equipment investment was 2.75 million yuan, with an investment payback period of only 1.8 years;
- Safety Assurance: The peak inrush current during capacitor switching decreased from 1200A to 500A, below the equipment’s rated withstand value. No capacitor overload or reactor overheating faults occurred in the first year of operation.
V. Conclusion: Capacitors and Reactors – Core Partners for Power System Optimization
Amid the trend toward efficient, stable, and green power systems, the synergistic application of capacitors and reactors not only addresses traditional issues such as reactive power imbalance and harmonic pollution but also enhances the power grid’s ability to respond to load fluctuations. Whether for voltage optimization in high-voltage transmission lines or cost reduction for industrial users, these two devices provide economical and reliable solutions.
If your power system faces issues such as low power factor, excessive harmonics, or voltage fluctuations, please share details including the grid voltage level (e.g., 10kV, 35kV), load type (e.g., motor power, proportion of nonlinear equipment), and core pain points (e.g., line loss rate, harmonic order). Hengrong Electric CO., LTD. will customize an exclusive capacitor and reactor configuration plan to improve power factor and support safe, efficient power grid operation!
