In modern power systems, with the widespread use of nonlinear loads such as variable frequency drives, rectifiers, and power electronic converters, harmonic issues are becoming increasingly serious. Harmonics—voltage or current components with frequencies that are integer multiples of the fundamental frequency (50Hz or 60Hz)—not only shorten equipment life by causing excessive heating and vibration, but can also lead to significant power quality problems, including voltage distortion, malfunction of protective relays, and interference with communication systems. Among the many harmonic mitigation measures—from active filters to passive harmonic traps—adding a series reactor to a capacitor circuit stands out as a simple yet cost-effective solution. This article explores the critical role of reactors in harmonic suppression, delving into their functionality, selection criteria, and real-world applications.
1. What Is a Reactor, and Why Is It Indispensable in Capacitor Circuits?

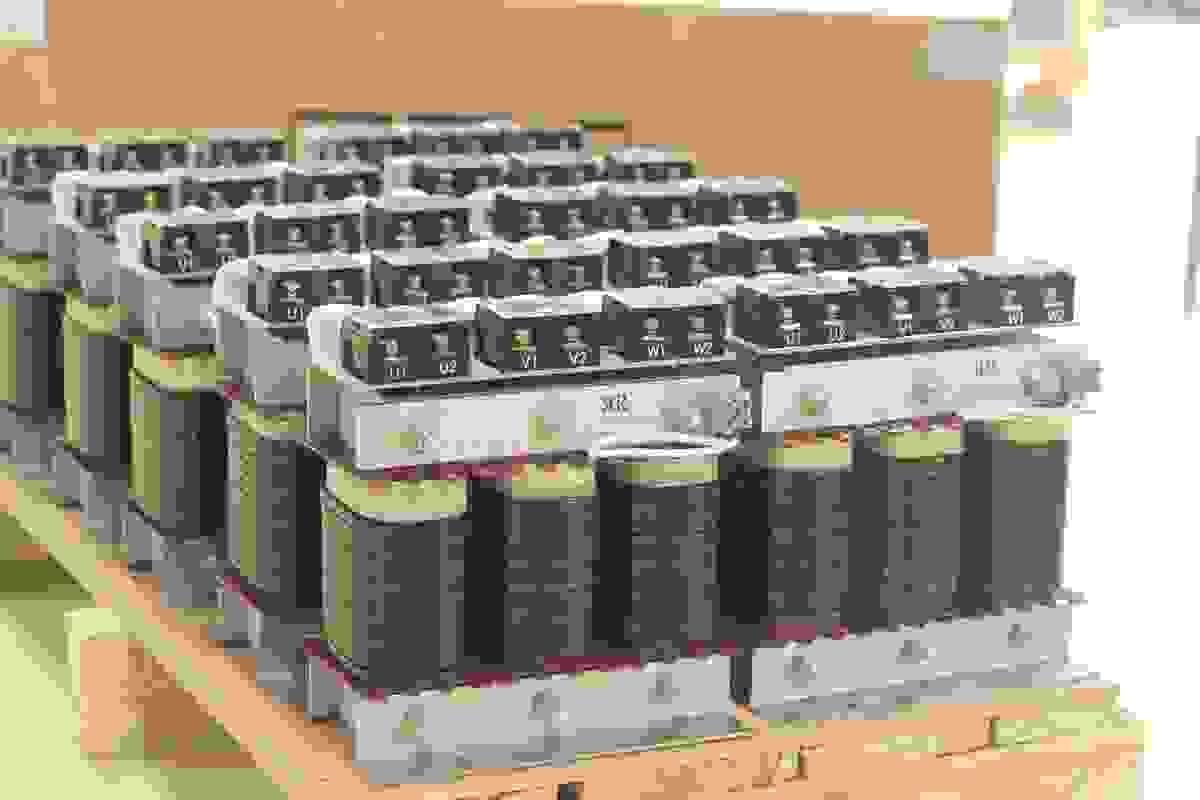

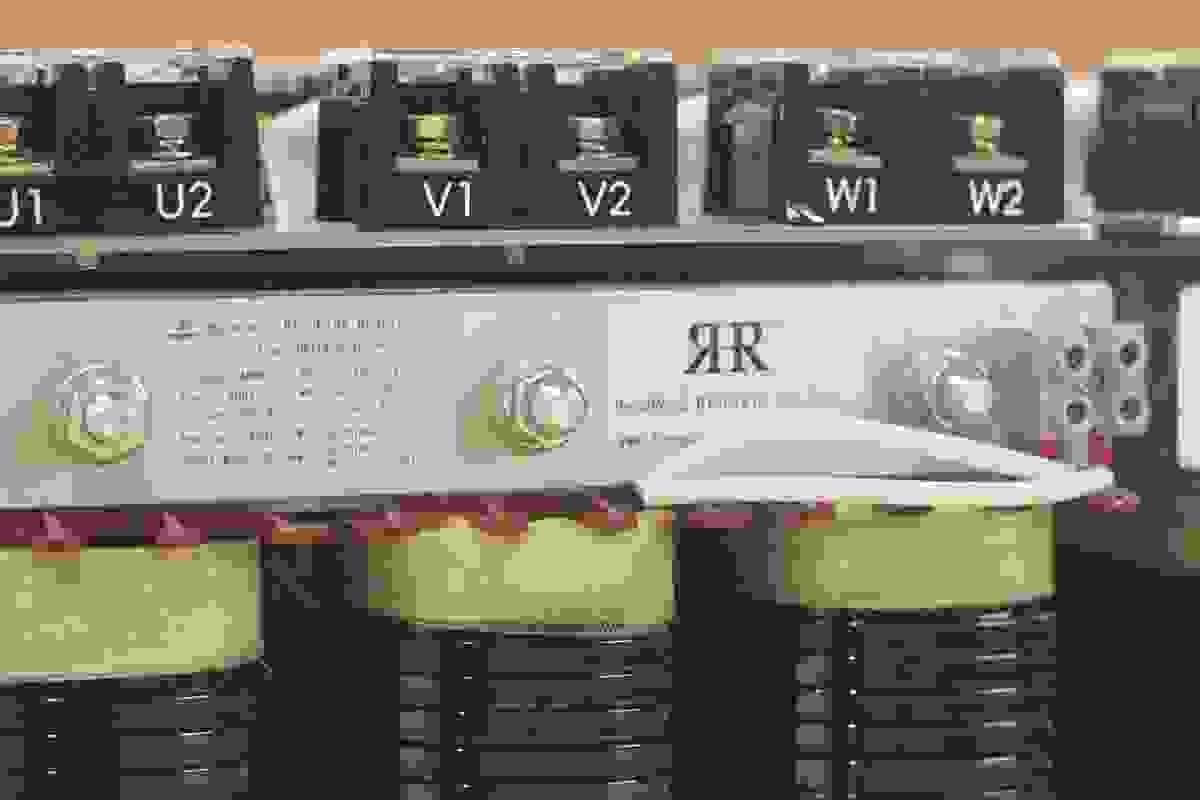

A reactor, also known as an inductor, is a passive electrical component that stores energy in a magnetic field when electric current flows through it. In power systems, reactors are designed to introduce inductive reactance into circuits, which opposes changes in current flow, making them invaluable in capacitor compensation systems, where they serve as both protectors and performance optimizers.
Key Functions of Reactors in Capacitor Circuits
- Suppressing harmonic currents: Capacitors naturally exhibit low impedance to high-frequency harmonics, which means they can act as unintended "channels" for harmonic currents to flow through. A series reactor introduces inductive reactance that increases with frequency, creating a barrier that reduces the amount of harmonic current entering the capacitor bank.
- Reducing inrush currents: When capacitors are switched on, they can draw extremely high inrush currents due to their ability to charge rapidly. These surges can exceed 100 times the rated current, damaging capacitors, switches, and other components. Reactors limit this inrush by slowing the rate of current rise, ensuring smooth energization.
- Mitigating harmonic amplification: In power systems, the interaction between capacitor banks and the system’s inherent inductance (from transformers, cables, etc.) can create parallel resonance at certain harmonic frequencies. This resonance amplifies harmonic voltages and currents to dangerous levels. Reactors adjust the overall impedance of the capacitor circuit, shifting resonance frequencies away from critical harmonic orders (typically 3rd, 5th, and 7th) to prevent amplification.
Without a reactor, a parallel capacitor bank becomes a liability: its low impedance at harmonic frequencies attracts large harmonic currents, increasing losses and raising the risk of resonance. In severe cases, this can lead to capacitor explosions, transformer overheating, or even cascading system failures. For example, a paper mill in Europe once experienced repeated capacitor failures due to unmitigated 5th harmonic currents, resulting in production downtime and replacement costs exceeding $100,000 before reactors were installed.
2. Different Reactance Ratios, Drastically Different Harmonic Outcomes!
The reactance ratio (denoted as k) is defined as the ratio of the reactor’s inductive reactance (X_L) to the capacitor’s capacitive reactance (X_C) at the fundamental frequency. Mathematically, k = X_L / X_C. While this ratio appears straightforward, it determines whether a capacitor circuit will suppress harmonics, amplify them, or trigger dangerous resonance.
To understand its impact, consider the relationship between k and harmonic order (h). For a given harmonic frequency (h times the fundamental), the capacitive reactance of the capacitor decreases by a factor of h (X_C,h = X_C / h), while the inductive reactance of the reactor increases by a factor of h (X_L,h = X_L × h). This means the effective reactance ratio at harmonic h is k × h².
How K Values Shape System Behavior
- ✅ Proper Matching (k > 1 ÷ h²): When k exceeds 1/h² for a dominant harmonic h, the reactor’s impedance at that harmonic is greater than the capacitor’s impedance. This ensures the capacitor branch presents high impedance to the harmonic, diverting most of it away from the bank and reducing system distortion. For example, for the 5th harmonic (h=5), 1/h² = 1/25 = 0.04. A k value of 0.05 (which is >0.04) ensures the 5th harmonic is suppressed.
- ❌ Resonance Threshold (k = 1 ÷ h²): At this point, the reactor and capacitor impedances at harmonic h cancel each other out (X_L,h = X_C,h), creating a parallel resonance condition. The circuit’s impedance becomes extremely high, causing nearly all harmonic currents to flow into the capacitor branch. This can result in current magnitudes 10–100 times the rated value, destroying equipment in seconds.
- ❌ Harmonic Amplification (k < 1 ÷ h²): When k is less than 1/h², the capacitor’s impedance at harmonic h is lower than the reactor’s, turning the capacitor bank into a sink for harmonic currents. Worse, the combination of the capacitor bank and system inductance can amplify harmonics, with voltage distortion often exceeding allowable limits (e.g., IEEE 519 standards).
The consequences of choosing the wrong k are stark. A 2019 study by the International Council on Large Electric Systems (CIGRE) found that 30% of capacitor failures in industrial systems were linked to incorrect reactance ratios, with 70% of those cases involving k values that were too low, leading to harmonic amplification.
3. How to Select the Right Reactance Ratio? Method, Steps, and Case Study
Selecting the optimal k value requires a systematic analysis of system parameters, harmonic profiles, and operational conditions. Here’s a step-by-step approach:
3.1 Key Factors to Consider
- Dominant harmonic order (h): Identify the most prevalent harmonic in the system (e.g., 3rd in commercial buildings with fluorescent lighting, 5th in industrial plants with motor drives).
- Capacitor bank capacity (Qc): The total reactive power rating of the capacitor bank, typically in kVAR or MVAR.
- Bus short-circuit capacity (Sd): A measure of the system’s ability to supply current during a fault, in MVA. It reflects the system’s inherent impedance.
- Degraded operation tolerance: Whether the system must remain stable if some capacitor units fail (reducing total capacity).
- Reactor current rating: The total current through the reactor (fundamental + harmonics) must not exceed 1.3 times its rated current to avoid overheating.
3.2 Core Calculation: Harmonic Current Ratio
A critical metric is the ratio of harmonic current flowing into the capacitor branch (Ich) to the total harmonic current (Ih) in the system. This ratio indicates how effectively the reactor diverts harmonics away from the capacitor:
Ich/Ih = 1 ÷ [1 + (k - 1/h²) × (Qc/Sd)]
A lower ratio (e.g., <0.3) indicates effective harmonic suppression, while a ratio >0.7 suggests the capacitor is absorbing excessive harmonics.
3.3 Empirical Guidelines

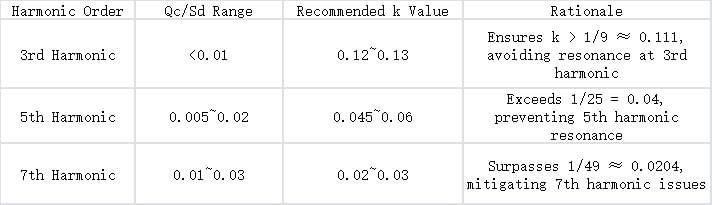

For quick reference, here are recommended k values based on common harmonics and Qc/Sd ratios (the ratio of capacitor capacity to system short-circuit capacity):
3.4 Example Calculation
A manufacturing plant with a 10kV system has a short-circuit capacity (Sd) of 200 MVA and plans to install a 1800 kVAR capacitor bank (Qc).
- Calculate Qc/Sd: 1800 kVAR ÷ 200,000 kVA = 0.009.
- Dominant harmonic is 5th (h=5), so 1/h² = 0.04.
- From the table, Qc/Sd = 0.009 falls in the 5th harmonic range, so k = 0.05~0.06.
- Verify Ich/Ih: For k=0.05, Ich/Ih = 1 ÷ [1 + (0.05 - 0.04) × 0.009] ≈ 0.99, indicating minimal harmonic absorption.
If the system had a higher Qc/Sd (e.g., 0.02), a higher k (e.g., 0.06) would be needed to maintain suppression.
4. Four Common Pitfalls When Selecting Reactors
Even experienced engineers can make critical errors when choosing reactors. Here are four pitfalls to avoid:
4.1 Ignoring Degraded Operation
Capacitor units can fail over time due to voltage stress or aging, reducing the total bank capacity. When 25% of units fail, the remaining capacity drops to 75%, but the equivalent capacitance increases by ~33% (since fewer parallel units raise total capacitance). This reduces the effective k value (k_new = k_original × remaining capacity ratio). For example, a k=0.05 with 75% remaining capacity becomes 0.0375, which is below the 5th harmonic threshold of 0.04, risking resonance. Always design for worst-case scenarios (e.g., 30% unit failure).
4.2 Focusing Only on Inrush Suppression
Some designers use ultra-low k values (0.001~0.01) to limit inrush currents, assuming this solves all problems. However, such low k values are far below 1/25 = 0.04, amplifying the 5th and 7th harmonics. A food processing plant once used k=0.01 reactors, which reduced inrush but caused 5th harmonic currents to triple, overheating transformers, and triggering monthly shutdowns.
4.3 Skipping Current Calculations
Reactors carry both fundamental and harmonic currents. The total current is the square root of the sum of the squares of these components (I_total = √(I_fundamental² + I_harmonic²)). For example, a reactor with a 100A rated current might carry 90A fundamental + 50A harmonics, resulting in I_total = √(90² + 50²) ≈ 103A—within the 1.3× rating (130A). However, ignoring harmonics could lead to overload; iron-core reactors are particularly vulnerable, as saturation from excess current degrades their performance.
4.4 Ignoring Frequency Fluctuations
Grid frequency rarely stays exactly at 50Hz or 60Hz—fluctuations of ±1Hz are common. This shifts resonance frequencies: a 1Hz drop (to 49Hz) reduces the 5th harmonic frequency to 245Hz, altering the effective k required for suppression. A 0.05 k at 50Hz may act like 0.048 at 49Hz, narrowing the safety margin. Always add a 10–15% buffer to k values to account for frequency variations.
5. Case Study: Reactor Selection for 10kV and 35kV Systems
Scenario 1: 10kV Substation with 5th Harmonic Dominance
A municipal substation has a 10kV bus with Sd=200 MVA and plans to install a 1800 kVAR capacitor bank. Harmonic analysis shows 5th harmonic distortion at 8% (exceeding the 5% limit per IEEE 519).
Steps:
- Qc/Sd = 1800 / 200,000 = 0.009.
- Target k for 5th harmonic: 0.05~0.06.
- Degraded operation check: 3 failed units (25% loss) reduce capacity to 1350 kVAR, k_new = 0.05 × 0.75 = 0.0375. This is just below 0.04 (1/25), risking resonance.
- Solution: Increase k to 0.06. With 25% loss, k_new = 0.06 × 0.75 = 0.045, which is above 0.04—safe from resonance.
- Result: Post-installation, 5th harmonic distortion drops to 2.3%, and inrush currents are limited to 15× rated current (down from 80× without reactors).
Scenario 2: 35kV Industrial Plant with 3rd Harmonic Issues
A steel mill’s 35kV system has Sd=500 MVA and a 5000 kVAR capacitor bank. The 3rd harmonic distortion is 12% due to arc furnaces.
Steps:
- Qc/Sd = 5000 / 500,000 = 0.01.
- 3rd harmonic requires k > 1/9 ≈ 0.111. Recommended k: 0.12~0.13.
- Degraded operation: 10% unit failure reduces capacity to 4500 kVAR, k_new = 0.12 × 0.9 = 0.108—slightly below 0.111.
- Solution: Select k=0.13. With 10% loss, k_new = 0.13 × 0.9 = 0.117 > 0.111, ensuring safety.
- Result: 3rd harmonic distortion falls to 3.8%, and capacitor life expectancy doubles from 3 to 6 years.
6. Summary: Choosing the Right Reactor Is Key to Harmonic Control
Reactors are unsung heroes in power systems, balancing the need to suppress harmonics, limit inrush currents, and prevent resonance. Their effectiveness hinges on the reactance ratio (k), which must be tailored to the system’s harmonic profile, short-circuit capacity, and operational constraints.
Key takeaways:
- Prioritize harmonic suppression over inrush control; a well-chosen k addresses both.
- Account for degraded operation and frequency fluctuations with safety margins.
- Verify total reactor current to avoid overload.
As power systems grow more complex with renewable energy integration and nonlinear loads, the role of reactors will only become more critical. By selecting reactors scientifically, engineers can ensure system stability, extend equipment life, and maintain high power quality, proving that even small components can make a big difference.
Facing challenges with capacitor and reactor selection?
Leave a comment or message us—Hengrong Electric Co., Ltd., which manufactures reactors and other electrical equipment, is here to answer any questions you may have!
