In industrial production and commercial power consumption scenarios, the widespread application of non-linear loads (such as frequency converters, UPS, and computer power supplies) has led to increasingly prominent issues of harmonic currents (HC) and reactive power (RP). These issues not only cause faults such as transformer overheating, increased line losses, and motor vibration, but also severely restrict the power supply stability of power systems. As a core device for solving such power quality problems, the performance of APF (Active Power Filter) directly determines the effectiveness of harmonic control and reactive power compensation. This article will delve into how to optimize APF design through FPGA (Field-Programmable Gate Array) technology, break through the performance limitations of traditional solutions, and provide enterprises with more efficient power quality solutions.
1. Power Quality Dilemma: Why Do Traditional APF Solutions Urgently Need Upgrading?
During the operation of a power system, "good power quality" means stable interaction between the power source and electrical equipment. When voltage and current parameters meet standards, equipment can operate normally; however, the presence of harmonics and reactive power disrupts this balance and triggers a series of chain problems. Harmonic currents cause voltage distortion, increase voltage stress on the insulation layer of equipment, and shorten the service life of core equipment such as motors and transformers. Reactive power reduces the power factor of the power grid, leads to increased line losses, and even causes power grid voltage fluctuations. Although traditional passive filters (PF) can initially suppress harmonics, they have defects such as large size, fixed compensation, and high risk of resonance, making them unable to adapt to complex and changing load scenarios.

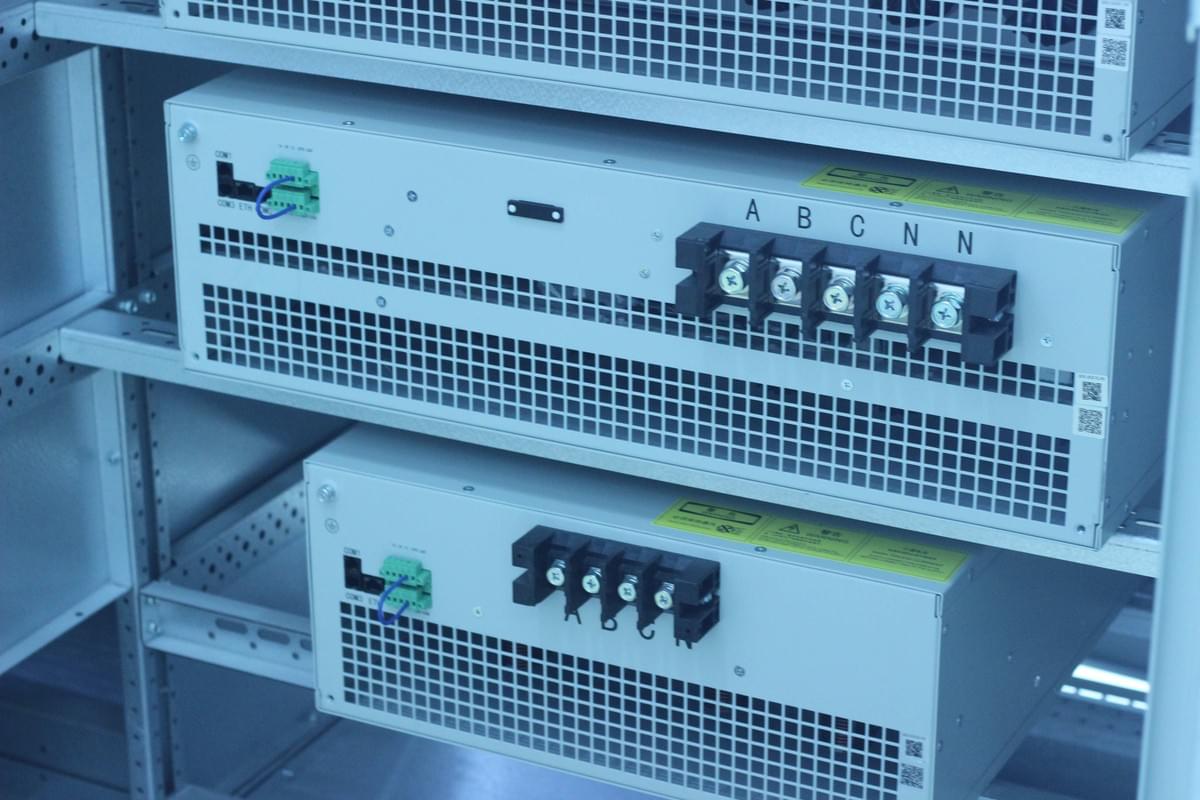

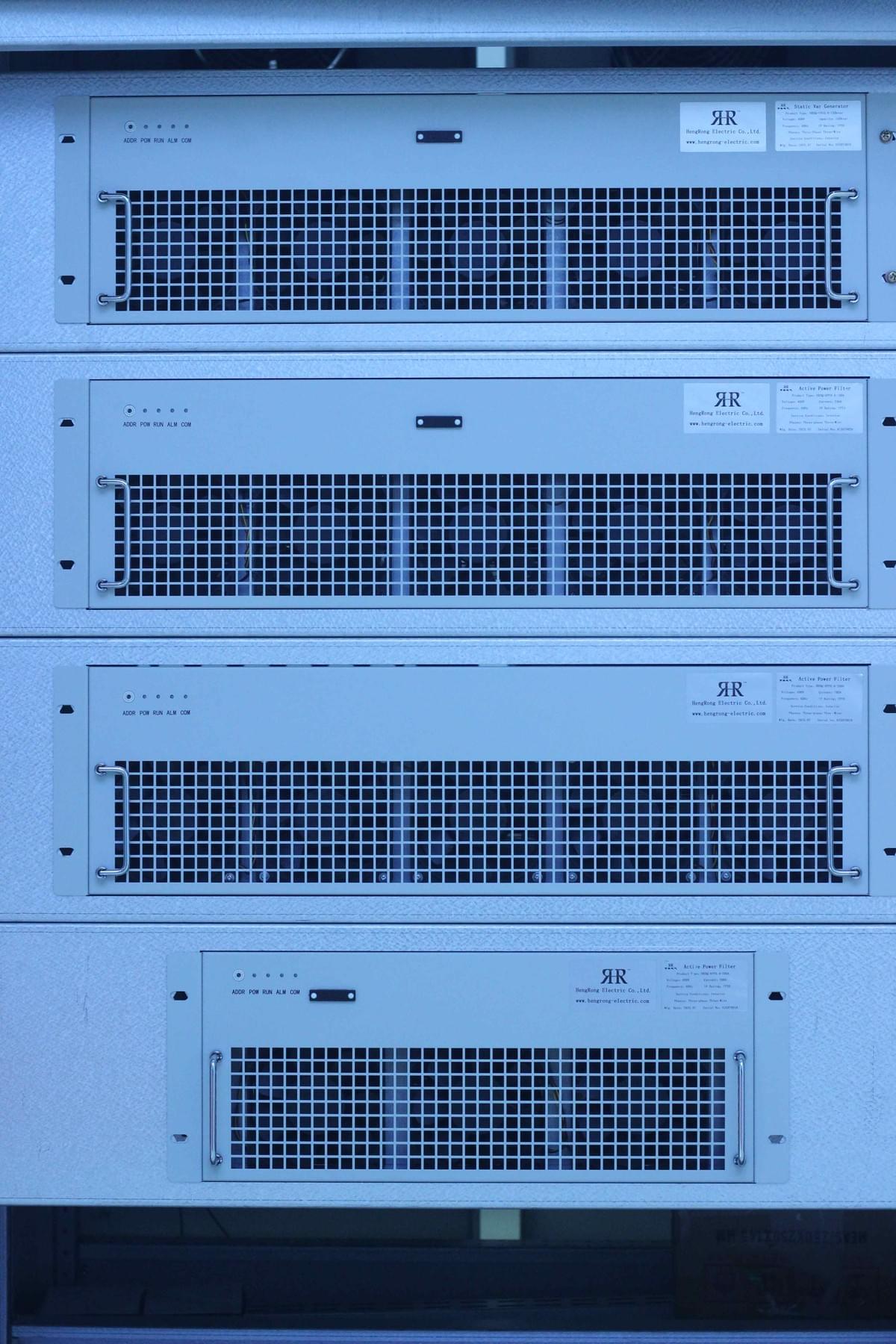

To address these issues, APF (Active Power Filter) has emerged. Compared with passive filters, APF actively generates compensation currents by real-time detecting harmonic and reactive components in load currents. It has advantages such as small size, flexible compensation, and no resonance risk, becoming the mainstream choice for current power quality control.
However, traditional APF solutions mostly rely on DSP (Digital Signal Processor) or microcontrollers to implement control algorithms, and there are three key bottlenecks. First, the sampling rate is limited. The serial operation characteristic of DSP leads to long sampling intervals, making it difficult to track rapidly changing harmonic currents in real time. Second, the calculation delay is high. Core algorithms such as the Synchronous Reference Frame (SRF) require complex mathematical operations, resulting in high CPU occupancy of DSP and being prone to compensation delays. Third, the accuracy is insufficient. Operational errors at the software level and hardware resource limitations make it difficult for the compensation accuracy of APF to meet high-demand industrial scenarios (such as precision manufacturing and data centers). These bottlenecks directly affect the performance of APF, and a more efficient hardware architecture is urgently needed to break through - FPGA technology is the key to solving this problem.
2. FPGA Empowering APF: Core Advantages and Technical Architecture
The parallel operation characteristics and customizable hardware resources of the FPGA can perfectly match the real-time and high-precision requirements of APF. Compared with DSP solutions, FPGA-based APF (FPGA-based Active Power Filter) has three core advantages. First, parallel operation with no delay compensation. FPGA can simultaneously implement multiple tasks such as harmonic detection, phase synchronization, and PWM (Pulse Width Modulation) generation, avoiding the serial operation delay of DSP, and the compensation response speed is increased by more than 50%. Second, hardware customization with high resource utilization. Through customized hardware modules (such as adders and multipliers), an FPGA can optimize the core algorithms of APF (such as SRF), reduce redundant operations, and increase the calculation accuracy to 0.1%. Third, flexible adaptation for multi-scenario compatibility. The reconfigurable characteristic of the FPGA supports rapid adjustment of APF compensation parameters to adapt to the load characteristics of different industries (such as the chemical industry, new energy, and medical care).
2.1 Core Hardware Architecture of FPGA-Based APF
To achieve high-performance operation of APF, the FPGA architecture needs to integrate two key modules: a three-phase Phase-Locked Loop (3φ PLL) and a directed current controller.
(1) Three-Phase PLL Module: Achieving Accurate Synchronization Between APF and Power Grid
The compensation effect of APF depends on phase synchronization with the power grid voltage. Only by accurately obtaining the phase information of the power grid voltage can a compensation current opposite to the harmonic current be generated. Traditional PLL (such as the zero-crossing detection method) is prone to loss of lock under harmonic and noise interference. However, the three-phase PLL module implemented by the FPGA ensures synchronization accuracy through special designs. Phase detection based on Park transformation converts three-phase grid voltages (Va, Vb, Vc) into DC components in the dq coordinate system, and real-time corrects phase errors through a PI controller to ensure that the phase synchronization error is less than 0.5%. The internal RAM of the FPGA is used to store a 1/4-cycle sine wave table (based on the symmetry of the sine function) to reduce storage resource occupation. At the same time, a Finite State Machine (FSM) is used to control address generation, and sine/cosine signals synchronized with the power grid are quickly output. The PI adjustment link is designed as a hardware module to avoid software operation delay, and the phase-locking time is shortened to within 10ms, adapting to power grid frequency fluctuation scenarios (such as 49.5Hz ~ 50.5Hz).
(2) Directed Current Controller: Achieving High-Precision Current Tracking of APF
The core task of APF is to generate a compensation current (Ic) opposite to the harmonic current. The directed current controller needs to track the reference current (Ir) in real time and drive the inverter through PWM signals. The directed current controller implemented by an FPGA improves tracking accuracy through specific technologies. Two layers of hysteresis loops are set (Mi is the inner hysteresis threshold, Mo is the outer hysteresis threshold). When the error current (ΔI) exceeds Mo, the voltage vector is quickly switched to force ΔI to return. When ΔI is between Mi and Mo, the reference voltage vector (Vref) is predicted to optimize PWM output, reduce the switching frequency, and lower the power consumption of APF. Based on the sector where the error current is located (a total of 6 sectors, covering a 360° current vector), the optimal voltage vector is selected through the hardware decoder of FPGA to ensure that the Total Harmonic Distortion (THD) of the compensation current is less than 3% (far lower than the 5% requirement of the national standard GB/T 14549-1993). Multiplication operations are replaced by shift operations (for example, the integral coefficient Ki is set to a power of 2) to reduce the occupation of FPGA multiplier resources, and the Slice utilization rate is only 3%, reserving space for subsequent function expansion.
3. Performance Verification of FPGA-Based APF: Data and Scenario Applications
To verify the performance improvement of APF by the FPGA solution, we used Xilinx 14.7 development tools and ModelSim 6.3f simulator, built a test platform based on the Spartan 3 FPGA development board, compared the key indicators of the traditional DSP-based APF and FPGA-based APF, and verified the effect in actual industrial scenarios.
In terms of core performance indicators, the phase synchronization error of the traditional DSP-based APF is ±2°, while the FPGA-based APF reduces this error to ±0.5%, with an improvement of 75%. The compensation response time of the traditional solution is 20ms, and the FPGA-based APF shortens it to 8ms, an improvement of 60%. In terms of current tracking accuracy, the traditional solution is ±1%, and the FPGA-based APF improves it to ±0.1%, with a significant improvement in accuracy. In the FPGA-based APF, the Slice utilization rate of the PLL module is only 3%, and the Slice utilization rate of the directed current controller is 4%, resulting in low hardware resource occupation. For the THD of the compensated load current, the traditional solution is 4.2%, and the FPGA-based APF reduces it to 2.8%, which is lower than the national standard requirement, with an improvement of 33%. It can be seen from these data that the FPGA-based APF is significantly superior to the traditional solution in synchronization accuracy, response speed, and compensation effect. Especially in THD control, it fully meets the requirements of scenarios with high power quality requirements such as precision manufacturing and data centers.
In practical scenario applications, the load of a new energy vehicle battery production workshop is high-frequency charging piles and welding equipment, and the harmonic currents are mainly 5th and 7th order. After the deployment of FPGA-based APF, significant improvements have been achieved. The number of shutdowns of welding robots caused by voltage distortion has decreased from 5 times per month to 0, greatly reducing the equipment failure rate. Line losses have decreased by 8%, saving about 20,000 yuan in electricity costs per month and reducing the energy consumption cost of the enterprise. The power factor of the power grid has increased from 0.82 to 0.98, avoiding the power factor penalty from the power company and reducing unnecessary expenditures for the enterprise.
4. Future Outlook: Development Direction of FPGA-Based APF
With the development of Industry 4.0 and new energy, the load characteristics of power systems will become more complex, such as the access of distributed photovoltaics and energy storage systems, which puts forward higher requirements for the performance of APF. FPGA-based APF will be upgraded in multiple directions. In terms of multi-module collaboration, parallel operation of multiple APFs can be realized through high-speed interfaces of FPGA (such as PCIe), which can adapt to megawatt-level industrial loads and meet the power quality control needs of large factories and industrial parks. In the direction of AI integration, lightweight AI algorithms (such as neural networks) will be integrated to enable APF to achieve adaptive compensation without manual parameter adjustment, reducing operation and maintenance costs and improving the intelligence level of equipment. In the field of edge computing, combined with the low-power characteristics of an FPGA, edge-side APF equipment will be developed to adapt to scenarios such as microgrids and off-grid power stations, expanding the application scope of APF.
5. Conclusion
As a core device for power quality control, the performance of APF directly determines the production stability and energy consumption cost of enterprises. The bottlenecks of traditional DSP solutions can no longer meet the current industrial needs, while FPGA technology provides an optimal solution for improving the performance of APF through three advantages: parallel operation, hardware customization, and flexible adaptation.
From technical verification to practical application, FPGA-based APF has demonstrated significant value: it can not only reduce the THD of load current to below 3% but also reduce equipment failure rates and energy consumption, creating considerable economic benefits for enterprises. In the future, with the continuous iteration of FPGA technology and the integration of AI and edge computing, APF will become a core component of the smart grid, providing more efficient solutions for global power quality control and helping various industries achieve green, stable, and efficient power supply.
