In coal mine production, frequency conversion devices and rectifiers of large-scale equipment (e.g., main hoists, ventilators) generate massive harmonics and consume reactive power. This leads to three critical issues: low grid power factor, high line losses, and even equipment failures/safety hazards. As a new-generation power quality optimization device, the SVG (Static Var Generator) dynamically compensates for reactive power and filters harmonics, providing a safe and economical guarantee for coal mine power supply systems. This article explains how SVG addresses coal mine power supply issues, covering grid pain points, SVG's working principles, and the effects of its application.
I. Pain Points of Coal Mine Power Supply Systems: Why SVG Intervention Is Essential?
Harmonic and reactive power issues in coal mine grids stem from equipment characteristics and traditional compensation limitations. SVG addresses these core pain points:
1. Severe Harmonic Pollution Endangers Equipment Safety
- Harmonic Sources: Frequency converters (hoists, air compressors) and rectifiers generate 3rd/5th/7th harmonics.
- Measured Impact: A coal mine’s 10kV bus showed current THD >15% (5th harmonic: 8%, 7th harmonic: 5%), increasing transformer temperature by 10-15℃ (insulation life shortened by 30%) and interfering with underground communication (gas monitoring false alarms risked).
- SVG Solution: Real-time outputs reverse harmonic current, reducing THD to <5% and eliminating root hazards.
2. Reactive Power Imbalance Drives High Energy Costs
- Power Factor Issue: Equipment starts with PF = 0.1-0.2 (hoists) and operates at PF = 0.7-0.8 (far below the 0.9 industry standard).
- Economic Loss: Annual electricity fines exceeded 1 million yuan; a 10kV line incurred 500,000 kWh extra annual loss (≈350,000 yuan in electricity costs).
- SVG Solution: Dynamically tracks reactive demand, boosting PF to 0.96-0.98 to avoid fines and cut line losses.
3. Traditional Compensation Fails Dynamic Loads
- Traditional Limitation: Passive devices (fixed capacitors) have a slow response (≥500ms), are unable to handle frequent equipment startup/shutdown (hoists: 3-5 cycles/hour), leading to over/under-compensation. One mine’s over-compensation burned 2 underground transformers (bus voltage spiked to 12.5kV from 10.5kV).
- SVG Advantage: Response time ≤20ms, accurately following load changes to avoid voltage fluctuations and equipment damage.
II. Core Advantages of SVG: Why It’s the Coal Mine's Preferred Choice?
With a high-power voltage-source inverter as its core, SVG integrates reactive compensation and harmonic mitigation. Its 5 key advantages outperform traditional equipment:
1. Full-Range Dynamic Compensation for Complex Loads
- Function: Continuously adjusts between rated inductive/capacitive reactive power (no capacitor bank switching).
- Example: Hoist startup needs inductive reactive power → SVG outputs capacitive current; normal operation → SVG auto-adjusts to avoid over-compensation.
- Result: 10kV bus PF stabilizes at 0.96-0.98 (fluctuation ≤0.02), vs. 0.1 fluctuation with traditional devices.
2. Strong Harmonic Mitigation with Controllable Output
- Flexible Targets: Independently compensates reactive power, filters specified harmonics (3rd/5th/7th), or achieves full harmonic mitigation.
- Test Data: SVG filters 92% of the 5th harmonic and 88% of the 7th harmonic, reducing grid THD from 15% to 2.26% (compliant with GB/T 14549-1993).

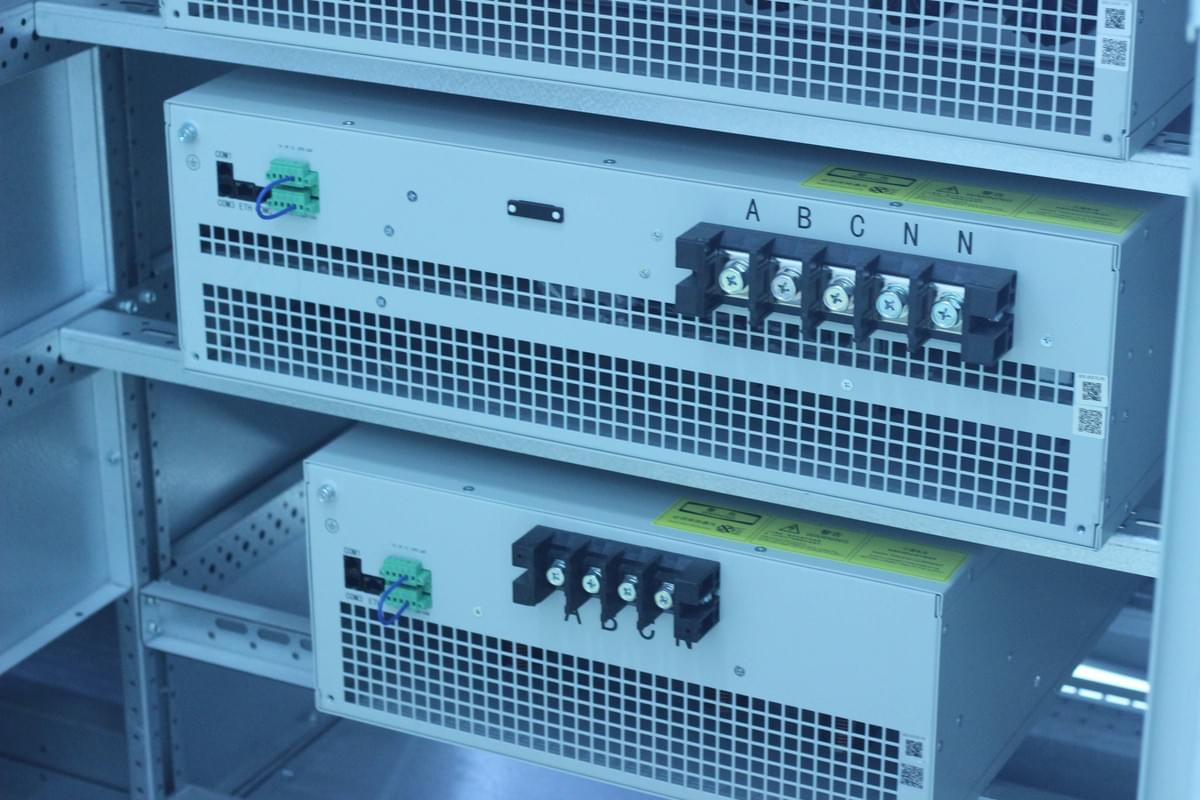

3. Safety, Reliability & Compact Design
- Hardware Advantages: IGBT-based (no rotating parts, MTBF ≥50,000 hours); DC capacitor storage reduces volume to 1/3 of traditional devices.
- Scenario Fit: Mobile SVG versions adapt to narrow underground spaces and working face relocations.
4. Fast Response Stabilizes Power Supply
- Voltage Control: Response ≤20ms suppresses flicker/sags. A mine’s main ventilator startup caused a 15% voltage sag → SVG cut it to <3% (avoided gas accumulation from shutdown).
- Current Balance: Reduces three-phase unbalance from 12% to <2%, protecting motors from overload.
III. Practical SVG Application: Effects & Benefits Verified
A coal mine installed 2 sets of SVG-3600/10 high-voltage SVG in its 35/10kV substation. MATLAB simulation and on-site tests confirmed results across three key dimensions:
1. Power Quality Significantly Improved
Before SVG was deployed, the 10kV bus had a current total harmonic distortion (THD) of 15.3%, with 3rd, 5th, and 7th harmonics accounting for 8.2%, 7.5%, and 4.8% respectively. The power factor was 0.78, the voltage fluctuation ranged ±8%, and the voltage flicker reached 1.2%. After SVG was put into use, the 10kV bus THD dropped to 2.26%, with 3rd, 5th, and 7th harmonics reduced to 1.1%, 0.8%, and 0.5% respectively. The power factor rose to 0.97, voltage fluctuation was controlled within ±2%, and voltage flicker decreased to 0.3%—all meeting coal mine equipment operation requirements.
2. Energy & Cost Savings
In terms of line losses, the 10kV line current decreased from 850A to 680A, cutting losses by 31% and saving 520,000 kWh of electricity annually (equivalent to 364,000 yuan in electricity costs). For equipment life, transformer harmonic losses were reduced by 40%, lowering the transformer temperature by 8℃ and extending its expected service life by 5 years. The failure rate of underground motors dropped from 12% to 3%, reducing annual maintenance costs by 280,000 yuan. In total, the coal mine achieved annual comprehensive benefits of 1.53 million yuan (combining electricity cost savings and maintenance reductions), with an investment payback period of only 1.8 years.
3. Safety Guarantee Enhanced
The SVG system is equipped with multiple protection functions, including overvoltage, overcurrent, and overheating protection, and is linked with the coal mine’s overall power supply system. When a grid fault occurs, SVG can cut off its output within 10ms to prevent the fault from expanding. After SVG was applied, the coal mine no longer experienced equipment damage or production interruptions caused by power quality issues, and its safe production cycle was extended to 18 months.
IV. SVG Application Recommendations for Coal Mines: Maximize Effects
To leverage SVG fully, focus on 3 key steps during selection and deployment:

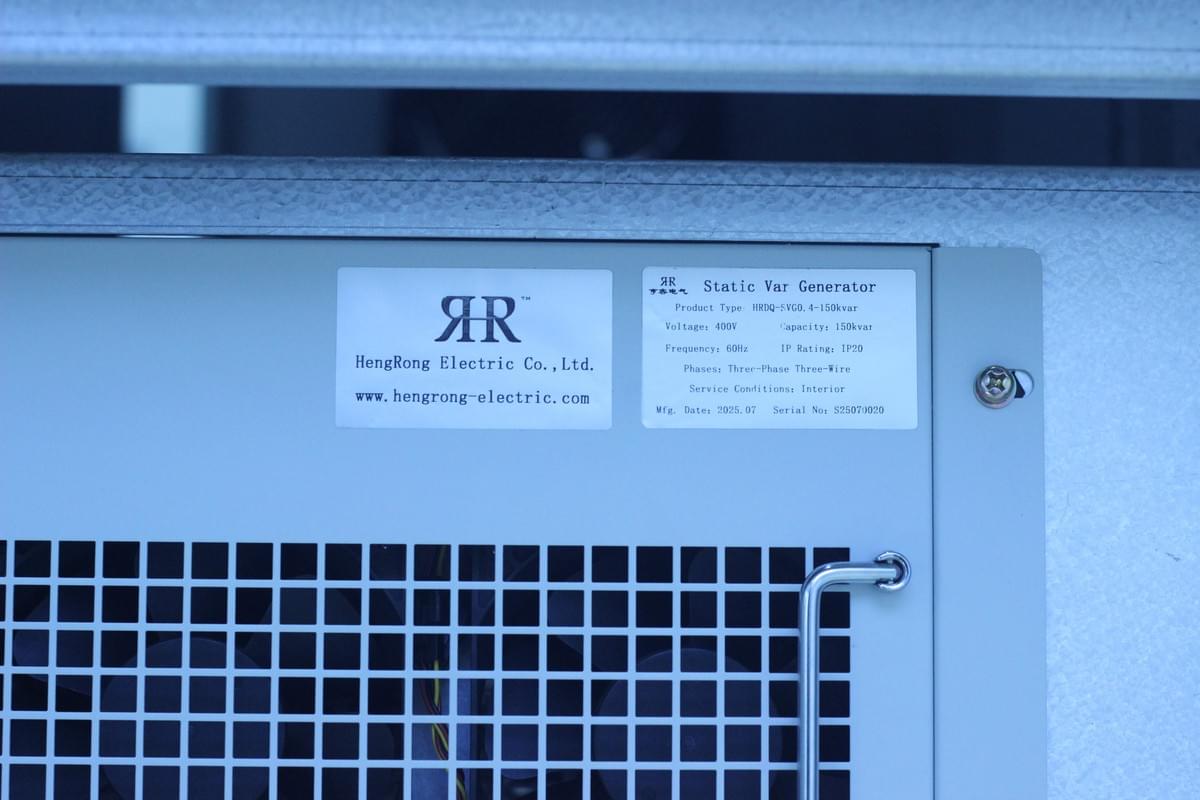

1. Accurate Selection Matching Loads
- Capacity Calculation: Based on max reactive demand + harmonic content. Example: A 1250kW hoist with a power factor of 0.7 requires an SVG capacity of at least 680kvar (calculated as 1250×(1/0.7 - 1/0.98)≈680kvar), and a 20% margin is recommended to accommodate load fluctuations.
- Voltage Level: 10kV-class SVG is preferred for ground substations, while 6kV or 1140V-class SVG is suitable for underground power supply networks to match different voltage grades.
2. Rational Deployment Near Harmonic Sources
- Principle: Install SVG in parallel with the main generation points of harmonics and reactive power (e.g., the distribution buses of hoists and ventilators). This reduces the transmission distance of reactive power and harmonics in lines, minimizing additional losses.
- Case: One coal mine installed SVG directly in the main hoist power distribution room instead of the main substation, which reduced line losses by an additional 15% compared to the traditional deployment method.
3. Linked Control with Mine Systems
- Integration: Connect the SVG control system to the coal mine’s power monitoring system (e.g., SCADA system) to realize remote real-time monitoring and automatic parameter adjustment.
- Example: 100ms before the hoist starts (when reactive demand will surge), the SVG system automatically enters a standby state to ensure timely reactive compensation once the hoist starts. When underground load changes (e.g., adjustments to ventilator speed), SVG adjusts its output in real time without manual intervention.
V. Conclusion: SVG – The Inevitable Choice for Coal Mine Power Upgrade
In the era of intelligent, green coal mining, SVG is the core device for power supply optimization, thanks to its dynamic compensation, harmonic mitigation, and safety advantages. It not only reduces energy consumption and operational costs but also protects equipment from damage caused by poor power quality, while meeting increasingly strict industry power quality standards.
